PRISM-m
- 6 hours ago
- 1 min read

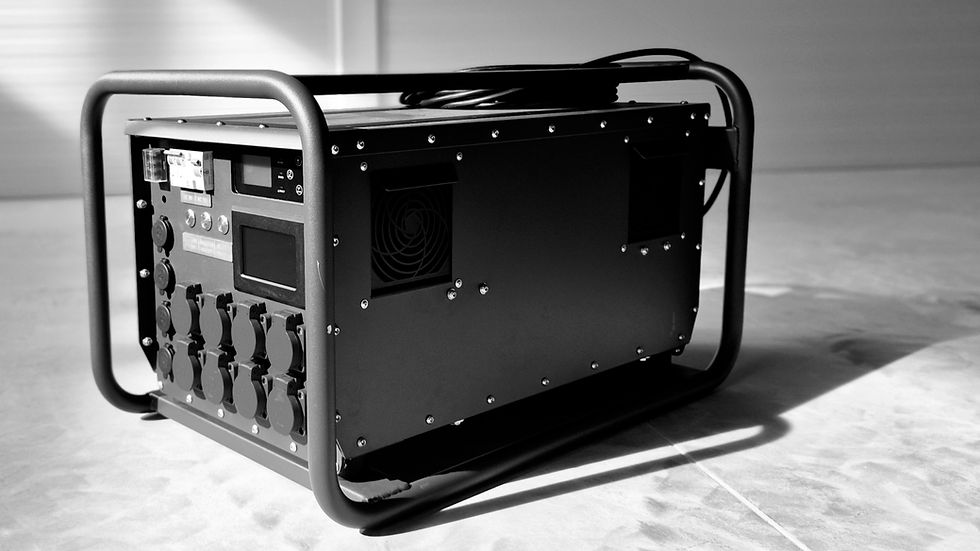

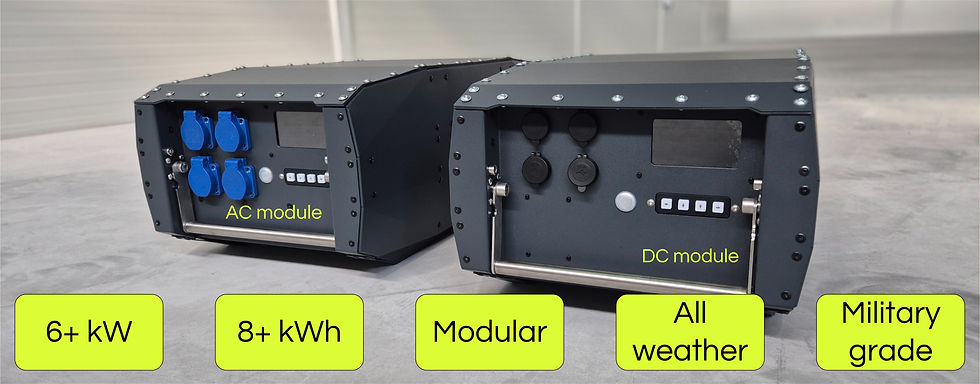

PRISM-m are modular highly customizable military-grade powerbanks. Their casing is made from aluminum therefore the entire solution is lightest and smallest in its class. The low-voltage DC battery and high-voltage AC inverter modules are separated. Each can be moved, expanded, replaced or used interchangeably. Depending on the mission, the energy capacity and maximum power can be configured on the field.
PRISM-m is designed for drone battery charging and tactical power supply, including support for forward positions and field hospitals. It delivers from 6 kW of continuous AC power and can operate in a low-signature (stealth) mode with no acoustic output and minimal thermal emissions. The system can be configured to charge from grid or solar sources, and it also supports bidirectional operation, enabling power export back to the grid. It includes from 8 kWh of onboard energy storage and is engineered for reliable performance in sub-zero environments.
AC sockets per module
AC Output | 220V |
Schuko/EU sockets (220V) | 4+4 |
Total AC power | 6.0 kW |
USB sockets per DC module
Total USB sockets | 12 |
USB-A sockets | 4 |
USB-C sockets (PD) | 8 |
Total USB power | 660W |
Charging
AC generator input | yes |
Grid input | yes |
Stacked capability
Smart interconnect | series or parallel |
AC output | up to 380 V, up to 100 kW |
DC output | 96 kWh (12 x 8 kWh) |
Approx. Total charges
9" FPV drones | 15 |
DJI Mavic drones | 111 |
